Stainless Steel Plb3-095 Brazed Plate Heat Exchanger for Oil Cooler/ Water Cooler

Basic Info

Model NO.	PLB3-095
Material	Stainless Steel
Voltage	220V/380V/Customized
Key Selling Points	Energy Saving
Design	-195~225
Plate Material	SS316\SS304
Applicable	Machinery Repair Shops, Manufacturing Plant, Food
Core Components	Engine
Machinery Test	Provided
Design Pressure	3.0MPa, 4.5MPa
Working	-30~225c
Dimension(L*W*H)	191mm*616mm*11+2.8n(mm)
Max No.of Plate	159
Max of Water Flow	45m³/H
Heat Exchange Area	0.095×(N-2)
Weight	6+0.39n
Design Temperature	-160c-225c
Transport Package	Wooden Case. Meet Export Standards.
Specification	PLB3-095
Trademark	propellent
Origin	China
HS Code	8419500040
Production Capacity	50000pieces/Yeas

Product Description

Product introduction

Model	Height (mm)	Height (mm)	Volume per channel	Max. Flowrate	Pressure Level	Max. Number of Plates
	(mm)	(mm)	(L)	(m3/h)	(bar)	pcs
PLQ014	208	78	0.02	4	30/45	60
PLQ020	317	78	0.04	4	30/45	100
PLQ026	310	111	0.05	18	30/45	120
PLQ030	325	95	0.03	10	30/45	100
PLQ050A	525	111	0.09	15	30/45	120
PLQ050B	525	111	0.09	18	30/45	120
PLQ060	526	119	0.11	18	30/45	100
PLQ095A	616	191	0.21	35	30/45	160
PLQ095B	616	191	0.25	35	30/45	180
PLQ100A	490	250	0.19	45	30/45	240
PLQ100B	490	250	0.25	60	30/45	240
PLQ110	528	246	0.21	45	30/45	250
PLQ190	696	307	0.43	150	30/45	300
PLQ210	739	321	0.41	100	30/45	250
PLQ300	1008	365	0.65	150	30/45	280

Product escription

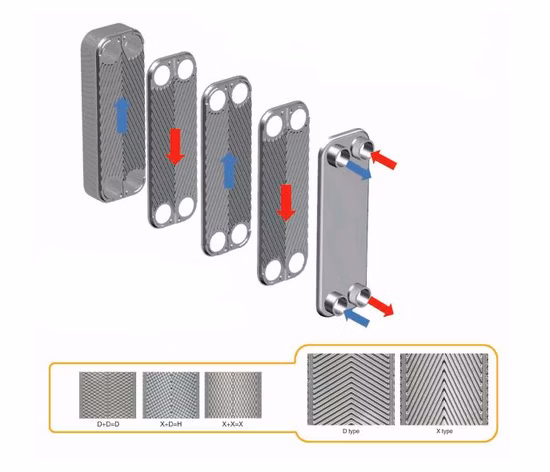

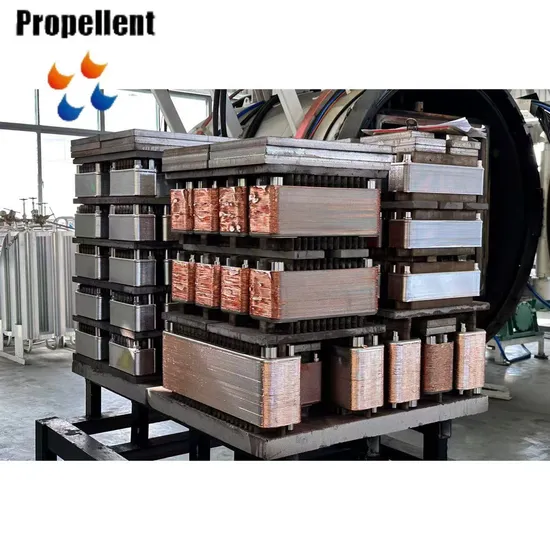

Propellent brazed plate heat exchangers consist of corrugations of metal plate and shells, without gaskets and frame. Purity copper flakes are placed in between each plate to separate them and the whole parts are brazed in high temperature furnace. The brazing structure seals and holds the plates together to ensure the exchanger work well in continuous high temperature and pressure conditions. Propellent brazed plate heat exchangers are special designed for promoting heat transfer efficient and reducing potential pollution.

1.High energy efficiency-low operating cost 2.Flexible configuration-heat transfer area canbe modified 3.Easy to install-compact design 4.High serviceability-easy to open for inspection and cleaning and easy to clean by CIP 5.Every detail is carefully designed to ensure optimal performance,maximum uptime and easy maintenance 6.Light weight, small footprint, easy installation

Related ProductsAbout us

Propellent, as the promoter and one of the leaders of effective heat exchanger technology, has been designing and manufacturing heat exchangers for decades of years. Propellent offers a full range of heat exchangers and heat transfer services in all type of industries. To achieve high efficiency at low operating costs, greater application possibilities at a lower investment cost.Customized solutions are provided to match the customers' requirements.
